Graham Square Glasgow: Molendinar Park Housing
posted in: Uncategorised | 0

Molendinar Park Housing Photos, Glasgow Homes Project, Design, Date, Image

Graham Square: Molendinar Park

Graham Square Glasgow Housing design by various architects, Scotland

9 July 2020

Graham Square Glasgow

Photos from 9th of July 2020

Graham Square homes

Graham Square Glasgow housing

Photos from 10th of February 2011

Graham Square Graham Square Glasgow Graham Square Glasgow Housing Glasgow Housing Gallowgate
photographs © Adrian Welch

Location: Graham Square Housing, nr. Gallowgate, Glasgow

Dates built: 1998-99

Design: Mckeown Alexander Architects ; Page & Park Architects ; Richard Murphy Architects, all Scotland, UK

Graham Square Graham Square Glasgow Graham Square Glasgow Housing Glasgow Housing Gallowgate
photographs © Adrian Welch

This project by Molendinar Park Housing Association involves low-cost housing by three high-profile architects within former sandstone meat market buildings.

Graham Square Graham Square Glasgow
photographs © Adrian Welch

The competition in 1997 called for entrants to explore sustainable, energy-conscious and ecological solutions in providing mixed-tenure housing in houses and flats. I’ve picked out two of the schemes in more detail:

mckeown alexander architects
Graham Square Graham Square Glasgow Glasgow Graham Square
Andrew Lee © Mckeown Alexander Architects

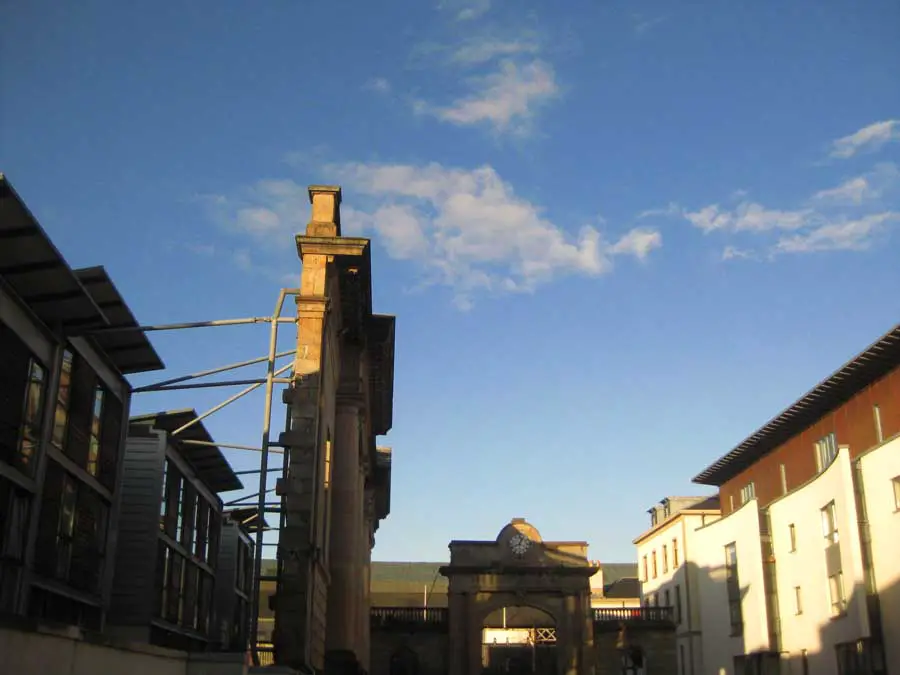

The original sandstone market elevation has been retained: instead of being used like wallpaper, the architects play a game by stepping their building away. The free-standing B-listed wall is pinned back using a support system devised by Ove Arup and the architects. This creates an unusual relationship and either a highly decorated wall or a very thin building: take your pick. Other elevations are more free in conception and use industrial steel cladding with asymmetric fenestration. The butterfly roofs oversail the facades and the overall composition is subtle and full of repose.

The route to the flat entrance doors is via a triple height glazed atrium space and the interior of the flats have several innovations including glazed winter-gardens and kitchens with opening corners. The £1.2m project comprises 20 flats (six for shared ownership and 14 for rent); a mixture of 2-bedroom and 1-bedroom types.

This scheme maximizes free energy gain and minimises heat loss through low ‘E’ glass and the use of glazed stair tower buffer zones which collect winter heat and are thermostatically-ventilated in summer. Portalised construction means load-bearing internal masonry walls are unnecessary and sliding doors allow for flexibility of internal arrangement. The 6m-wide space between the building and listed wall provides a buffer zone with the street: the wall’s openings also align with the stair towers beyond.

The principal strategy was to orientate living spaces south and southwest with sunspaces fronting the living rooms. Bedrooms are generally to the east to take advantage of morning light. The glazed stair towers providing bright, visible common stairs for occupants in contrast to traditional enclosed common stairs. Internally, living/dining areas occupy the full external wall area behind the sunscreens. Portalised construction allows for the omission of internal masonry loadbearing walls and provides future flexibility. Kitchens can be joined to or closed off from the living spaces by sliding doors.

Molendinar Park Glasgow Molendinar Park
Andrew Lee © Mckeown Alexander Architects

Flats with minimal external space have double-height living spaces. External materials include: roofs of zinc, walls rendered, powder-coated aluminium panels, cedar boarding.

mckeown alexander architects now jmarchitects

also by mckeown alexander architects in glasgow:
homes for the future housing, glasgow green

page & park architects

The Client, Molendinar Park Housing Association, was the Winner of the RIBA Client of the Year 2001. Describing the winning commission, the judges said, “Molendinar Park is an exemplary housing association which works by putting together teams of architects and getting them to talk to one another.

Molendinar Park, Page & Park Page & Park Architects Glasgow Page & Park Architects
photos © Keith Hunter from Page & Park Architects

Graham Square is just the latest and most significant in a series of design-led housing solutions. It resulted from an invited competition to build housing on the site of an old meat market in the east end of Glasgow. The Committee, chaired by Rob Joiner, was so impressed with the entries, that it commissioned each of the practices in turn to make their own distinctive contribution to this unique site.

Art works by Kenny Hunter and Judy Spark enhance and complete the square. What ties all these elements together – besides a shared memory – is quality, something Rob Joiner has fought for throughout a long and fruitful career in the field. He seems to bring out the best in architects. Seldom can such a diverse group of people have worked so successfully together, nor been so unanimous in their praise of a client.”

Page & Park Architects

Richard Murphy Architects

This site consisted of the derelict B-listed former Market Hotel – where traders lodged – attached to a surviving market archway: perfect material for Murphy’s trademark historical layering.

Richard Murphy Glasgow
photo © Alan Dimmick, from Richard Murphy Architects

The centre section was in danger of collapse and the architects chose to replace this with a new three-storey structure set back from the original building line. The two flanking wings were reconstructed to retain their frontages to Graham Square. This arrangement creates a semi-private courtyard with the entrance from Graham Square through the old hotel entry now remodelled as a gate in the partially-demolished front wall of the old central block.

Richard Murphy Architects Richard Murphy Molendinar Park, Scotland
image by Richard Murphy Architects

The project comprises of seventeen one and two bedroom flats. From the courtyard access to the flats is gained either directly – via a pair of symmetrical external stairs beneath a birdlike glazed canopy – or through a new common stair in the larger South wing.

With the glazed canopy uplit at night the effect is probably more hotel-like than the original. Whilst the architecture might be relatively quiet the social experiment of replacing the usual tenement ‘common stair’ with an external stair within a common courtyard has been a success with tenants already populating the courtyard with plants and seats.

Richard Murphy

Molendinar Park Housing Association have returned in early 2004 to commission Richard Murphy Architects to design more flats at Graham Square, Glasgow, following their successful project there. RMA have also been invited by Molendinar Park to compete for the masterplanning of the area.

Architecture in Strathclyde

Glasgow Walking Tours

Molendinar Park masterplan : Moore Street, Gallowgate

Saltire Award: New Build 3, Graham Square, Glasgow McKeown Alexander John Dickie Construction Ltd

Glasgow Housing
Homes for the Future
photo : Andrew Lee

As well as the Graham Square Housing, Glasgow, Page & Park Architects have completed other key projects in and around Glasgow:
The Museum of Country Life
The Italian Centre, Glasgow
Lomond Shores Imax

Graham Square Housing
Graham Square, New Build 3
Architect: McKeown Alexander Architects
Client: The Molendinar Park Housing Association
Completed: Oct 2000
Project cost: £1.6m
New Build 3 was a winning entry for a Scottish Homes Pilot Hag competition for a site, 2 km east of Glasgow cross, formerly the site of Glasgow’s abattoir and meat market.

Summary of judges’ comments:
A great advert for well-designed, low-cost living. Extremely well conceived, innovative housing for the independent sector, with thoughtful retention of the existing meat market façade. The projects acts as an exemplar – that imaginatively designed affordable housing can be life enhancing for all who live in it.
RIAS Building information – 27 Sep 2002

McKeown Alexander are now part of jm architects

Gallowgate Housing – 2005 Update
Molendinar Park Housing Association had detailed plans approved for a £3.9m development of 87 flats and an office in the Gallowgate area of Glasgow by Richard Murphy Architects

Moore Street Housing Glasgow
Moore Street
photo : Andrew Lee
