Refurbishment of Bridgegate House, Irvine

Office Building Irvine, Glasgow Property Renovation, Restoration, Location

Refurbishment of Bridgegate House

Irvine Commercial Accommodation design by Ian Springford Architects, Scotland, UK.

6 Feb 2014

Office Building Refurbishment

Design: Ian Springford Architects

Location: Irvine, North Ayrshire, Scotland, UK

Ian Springford Architects have completed work on the refurbishment of Bridgegate House in Irvine for North Ayrshire Council.

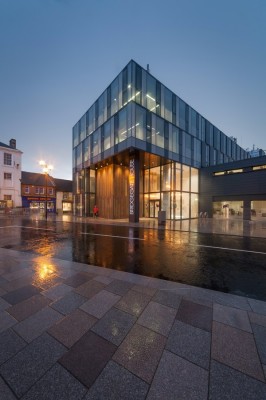

Bridgegate House 1
image courtesy of architects practice

Restoration of Bridgegate House

The project involved the recladding and internal reconfiguration of an existing 1970′s office building in the centre of Irvine as part of the urban regeneration of Irvine town centre and a key component of the Council’s property consolidation programme.

Bridgegate House 2

The Client brief was to retain the building and upgrade the existing external envelope, improve the occupational efficiency of the office space and unify the shop fronts, all while the building remained fully occupied.

Bridgegate House 3

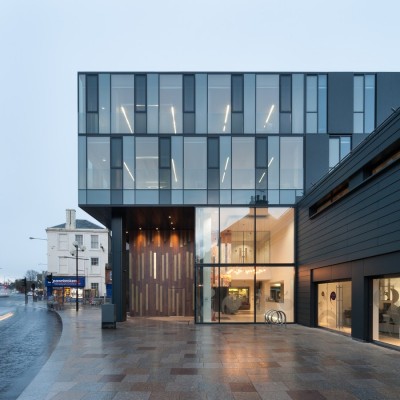

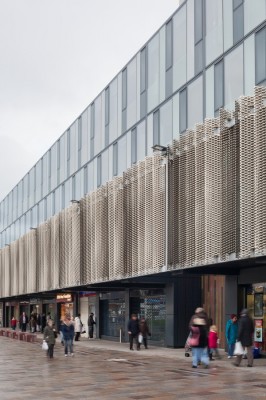

The dark, tinted, dilapidated curtain walling system was replaced with a high performance curtain wall envelope featuring clear tinted solar control coatings and ceramic fritted patterns to provide privacy and shading. A screen of anodized aluminium mesh louvers at first floor level will shade the glass, offer privacy, and create a layer of animation and variation through texture and colour along the streetscape to soften the appearance of the building. New shop fronts and signage will bring uniformity to the retail units.

The existing solid, tiled walls at the rear of the building are being thermally upgraded and finished in a variety of materials. Copper alloy cladding highlights the entrances and provides a warm contrast to the glass.

Bridgegate House 4

The office space was heavily cellurised and accommodated only 250 people. The cellular office floor plates have been stripped back to create open plan, naturally ventilated, flexible spaces. The existing concrete frame has been exposed to utilise its thermal mass as part of the passive cooling strategy.

The building has been environmentally modeled from the outset to inform the low energy strategy and mechanical services have been minimised. In Use figures are currently being obtained but we are confident the building will achieve a BREEAM ‘Excellent’ rating.

The new open plan layout actively promotes departmental connectivity and communication and improves the transparency of Council services while allowing for future flexibility. The new layout now accommodates circa 410 people with capacity to increase this to 450.

Bridgegate House 5

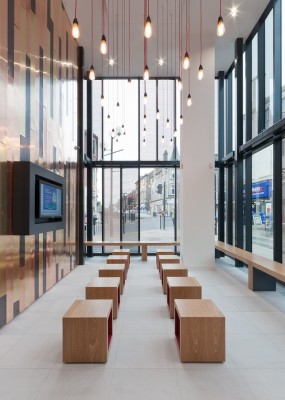

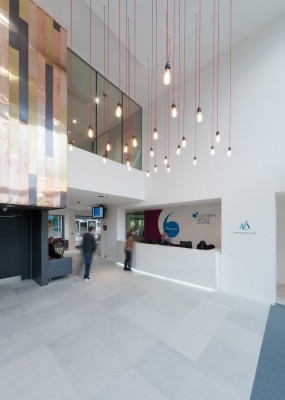

The neglected High Street underpass has been enclosed with a light, transparent glazed envelope to create additional floor space and bringing a new focal point to the High Street. Within this double-height space a vibrant, multi-functional, Customer Services Centre has been created to house North Ayrshire Council’s front of house services, further streamlining the Councils operational efficiency and creating a new public image for the Council. The services also include a municipal bank and interview rooms.

The refurbishment work was carried out in phases while the offices and shops remained occupied and operational. The refurbishment work was also coordinated with wider public realm and streetscape enhancement work undertaken at the same time. To complicate matters further, the a number of mobile phone and telecommunication masts are mounted on the roof and could not be disturbed during the work.

Refurbishment of Bridgegate House – Building Information

Client: North Ayrshire Council, Irvine Bay Regeneration Company
Location: Irvine
Cost: £6m
Completion: Phase 1, Spring 2013. Phase 2, December 2013

Location: Irvine, North Ayrshire, western Scotland, United Kingdom
